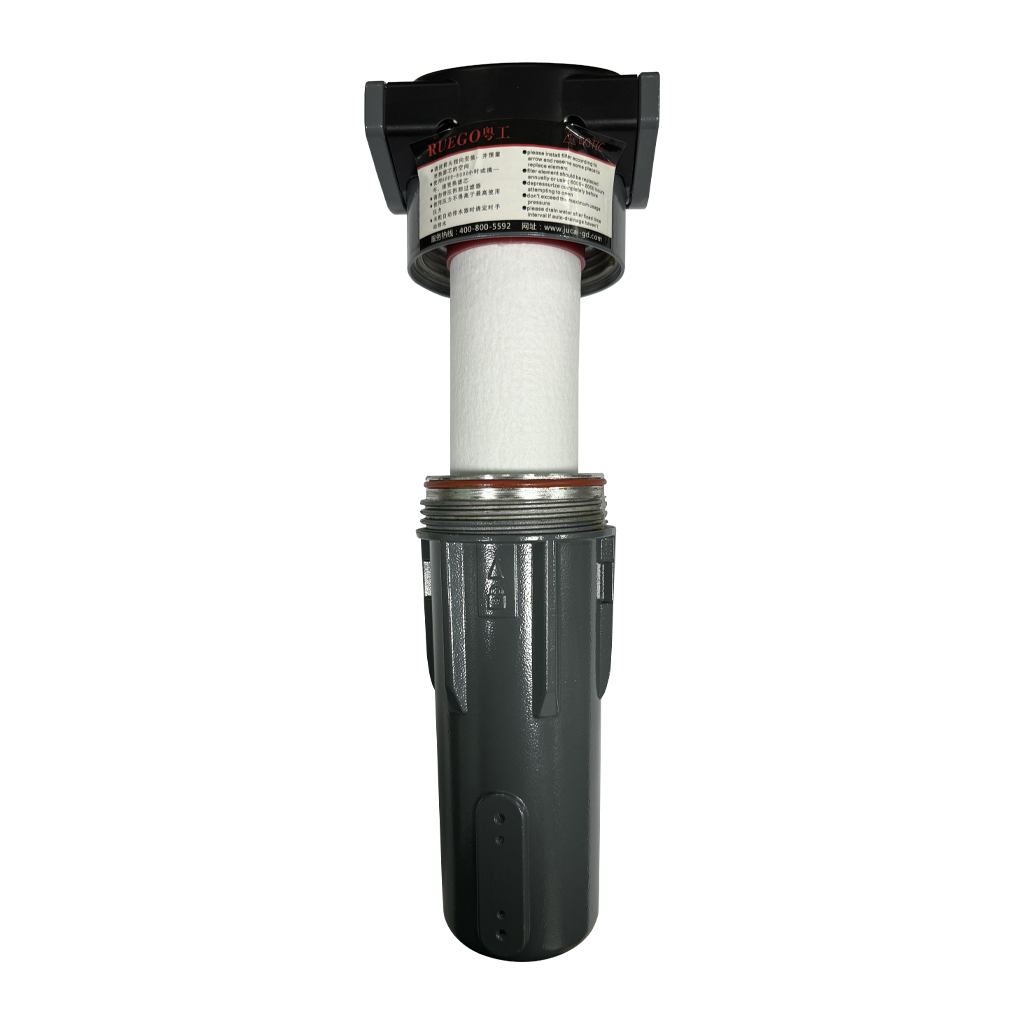

Air Compressor Filters
Our compressed air filters are meticulously designed to efficiently remove impurities, oil mist, and moisture from the air, preventing system leaks and blockages while ensuring stable operation and long-lasting compressor performance. With innovative technology to achieve low pressure drop, our filters reduce energy consumption, extend equipment lifespan, and deliver a more efficient and reliable air solution.
Reduce Operating Costs
High-efficiency filters effectively remove contaminants from the air stream, significantly reducing energy consumption and maintenance costs.
Extend Equipment Life
Our advanced filtration solutions prevent contamination-related wear, extending the life of your compressed air systems and equipment.
Improve Air Purity
RUEGO's advanced compressed air filters remove up to 99.99% of particles, oil mist and moisture, ensuring high compressed air purity and compliance with ISO 8573-1 standards.
Product Parameters
* For higher specifications please contact our sales team.
| Filter Model | Precision Class | Connection | Flow Rate | Filter Element Model | Weight | Dimensions |
|---|---|---|---|---|---|---|
| 05 | AM, AMD, AME, AMF | G¾ | 0.7 m³/min (24.7 cfm) | F0507 | 1.1 kg (2.43 lbs) | 267 × 243 × 89 mm (10.51 × 9.57 × 3.50 in) |
| 10 | AM, AMD, AME, AMF | G¾ | 1.5 m³/min (52.9 cfm) | F1015 | 1.1 kg (2.43 lbs) | 267 × 243 × 89 mm (10.51 × 9.57 × 3.50 in) |
| 15 | AM, AMD, AME, AMF | G1½ | 2.4 m³/min (84.8 cfm) | F1520 | 2.2 kg (4.85 lbs) | 267 × 243 × 89 mm (10.51 × 9.57 × 3.50 in) |
| 25 | AM, AMD, AME, AMF | G1½ | 3.8 m³/min (134.2 cfm) | F2530 | 2.2 kg (4.85 lbs) | 513.5 × 480 × 109 mm (20.2 × 18.9 × 4.29 in) |
| 40 | AM, AMD, AME, AMF | G1½ | 6.7 m³/min (236.6 cfm) | F4045 | 2.7 kg (5.95 lbs) | 513.5 × 480 × 109 mm (20.2 × 18.9 × 4.29 in) |
| 60 | AM, AMD, AME, AMF | G2½ | 12.0 m³/min (423.8 cfm) | F6075 | 8.0 kg (17.64 lbs) | 550 × 480 × 109 mm (21.65 × 18.9 × 4.29 in) |
| 100 | AM, AMD, AME, AMF | G2½ | 15.0 m³/min (529.7 cfm) | F100 | 16.0 kg (35.27 lbs) | 928 × 887 × 150 mm (36.54 × 34.92 × 5.91 in) |
| 220 | AM, AMD, AME, AMF | G3 | 22.0 m³/min (776.0 cfm) | F150 | 16.0 kg (35.27 lbs) | 928 × 887 × 150 mm (36.54 × 34.92 × 5.91 in) |
| 240 | AM, AMD, AME, AMF | G3 | 25.0 m³/min (883.0 cfm) | F175 | 28.0 kg (61.73 lbs) | 700 × 635 × 216 mm (27.56 × 25.00 × 8.50 in) |
Compressed Air Filters: Efficiency, Savings, Versatility
High-Efficiency Filtration
With filtration accuracy ranging from 5 microns to 0.01 microns, the filters remove up to 99.99% of particles, oil mist, and moisture, ensuring high-purity compressed air that meets ISO 8573-1 standards.Energy-Saving Design
Optimized for low pressure drop, the filters significantly reduce energy consumption while extending the service life of the compressor system. Filter elements last up to 3000-5000 hours, reducing maintenance costs and downtime.Versatile Solutions
Offering a wide range of series—Coarse (AM), Fine (AMD), Ultra-Fine (AME), and Activated Carbon (AMF)—these filters cater to various industries and applications. Built-in bypass and maintenance indicators simplify servicing and ensure uninterrupted operation.
Coarse Filter AMD
It is composed of a stainless support mesh and a woven material without any adhesive. The filtration accuracy is 5 Micron for impurities removal, the efficiency is 98%, the residual oil content is 5 ppm, and the pressure drop is 0.1 bar.
Fine Filter AMD
It is composed of woven fiber material without any adhesive, with a filtration accuracy of 0.5 Micron for impurities removal and an efficiency of 99%. The residual oil content is 0.5 ppm and the pressure drop is 0.2 bar.
Ultrafine Filter AME
Made of woven material without any adhesive, the filtration accuracy is 0.01Micron and the efficiency is 99.99%. The residual oil content is 0.01ppm and the pressure drop is 0.25bar.
Activated Carbon Filter AMF
It is composed of a stainless steel support mesh and high-performance activated carbon to adsorb oil vapor and odor. The filtration accuracy is residual oil, less than 0.003Micron\pressure drop 0.28bar.
* Filters of different grades can be used independently or combined as needed to provide comprehensive protection and support for your compressed air system.
