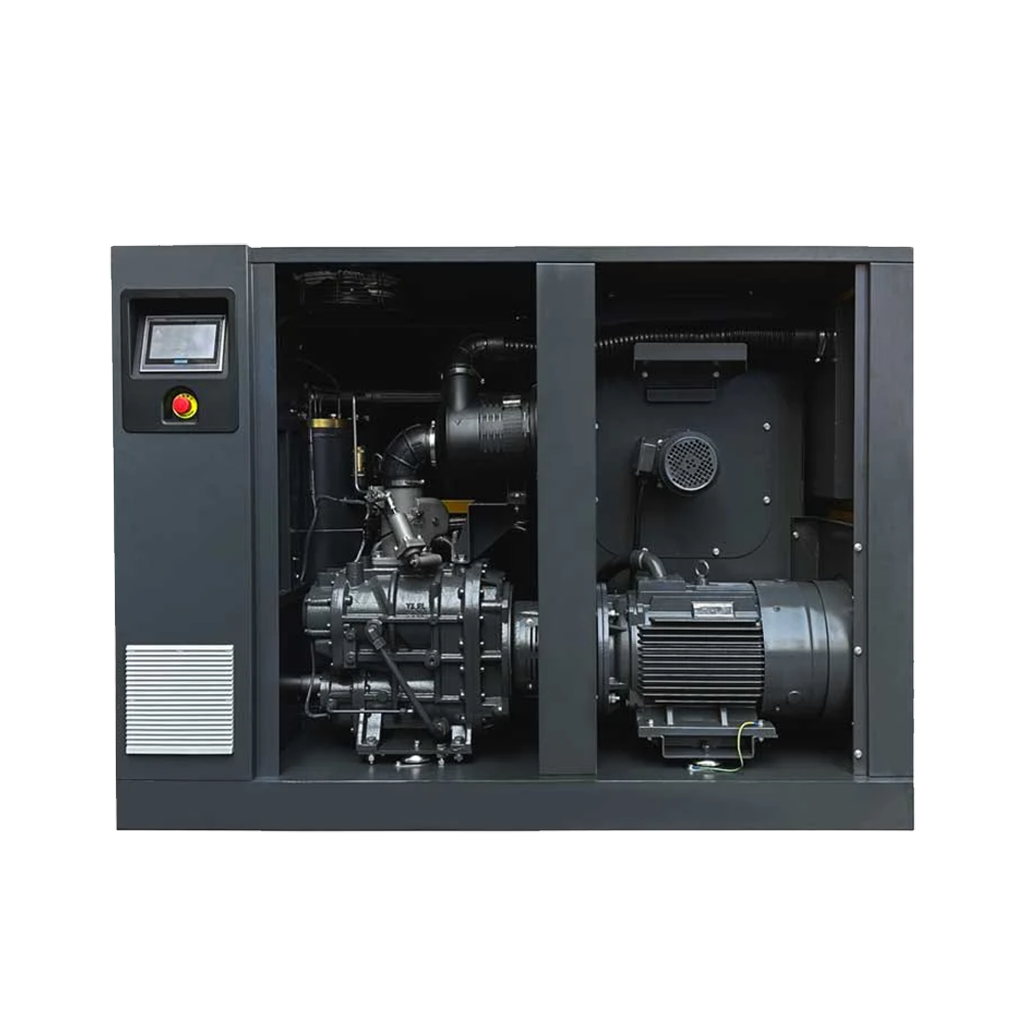

Two-Stage Screw Air Compressor
The two-stage screw air compressor combines exceptional efficiency with durable performance, offering advanced cooling systems, low-noise operation, and a sturdy design. Supporting 5, 8, 10and 12 Bar pressure options, it features intelligent controls for precise operation, making it ideal for diverse industrial applications.
Variable Speed Permanent Magnet Motor
Предыдущий слайд
Следующий слайд
Powerful performance
Choose from a range of power options from 37 kW (50 HP) to 250 kW (335 HP) to meet your specific requirements.
Wide range of air pressures
Two-stage screw compressors can provide air pressures from 5 bar (72.5 PSI) to 12 bar (174 PSI), meeting a variety of different industrial needs.
Stable supply of compressed air
Advanced two-stage compression ensures a stable and efficient air supply, guaranteeing optimal performance even in the most demanding industrial environments
Unparalleled energy efficiency goes hand in hand with easy maintenance
Help you reduce operating costs and minimize environmental impact with superior performance and unparalleled energy efficiency.
- Efficient cooling: The advanced cooling system adopts independent air intake and exhaust channel design, combined with multi-stage high-efficiency coolers to ensure long-term stable operation under high load conditions.
- Intelligent speed change: The intelligent variable speed control system dynamically adjusts the output under different loads to avoid energy waste to the greatest extent.
- Easy maintenance: The optimized design of the oil and gas barrel adopts a top rotating structure and an integrated layout, which significantly simplifies the daily maintenance and parts replacement process.
- Efficient standby mode: Under low load conditions, our equipment consumes only very little energy through optimized energy consumption management and always maintains an efficient standby state.
Product Parameters
* For higher specifications please contact our sales team.
| Model: | JYS-50HPM |
| Power: | 37 kW / 50 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 48 Liter |
| Noise: | 75±2 Db(A) |
| Air Outlet Pipe Diameter: | Rp1,1/2 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 5 bar | 8.2m³/min |
|---|---|
| 8 bar | 6.8 m³/min |
| 10 bar | 5.8 m³/min |
| 12 bar | 5.4 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1950*1100*1390 mm | 950 kg |
| Model: | JYS-60HPM |
| Power: | 45 kW / 60 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 48 Liter |
| Noise: | 75±2 Db(A) |
| Air Outlet Pipe Diameter: | Rp1,1/2 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 5 bar | 15.5m³/min |
|---|---|
| 8 bar | 8.2 m³/min |
| 10 bar | 7.4 m³/min |
| 12 bar | 6.6 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1950*1150*1390 mm | 980 kg |
| Model: | JYS-75HPM |
| Power: | 15 kW / 20 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 80 Liter |
| Noise: | 78±2 Db(A) |
| Air Outlet Pipe Diameter: | DN50 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 5 bar | 14m³/min |
|---|---|
| 8 bar | 11.6 m³/min |
| 10 bar | 9.1 m³/min |
| 12 bar | 9.0 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 2950*1500*1640 mm | 1890 kg |
| Model: | JYS-100HPM |
| Power: | 75 kW / 100 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 80 Liter |
| Noise: | 78±2 Db(A) |
| Air Outlet Pipe Diameter: | DN 50 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 5 bar | 18.5m³/min |
|---|---|
| 8 bar | 15.6 m³/min |
| 10 bar | 11.6 m³/min |
| 12 bar | 11.3 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 2590*1500*1640 mm | 1960 kg |
| Model: | JYS-120HPM |
| Power: | 90 kW / 120 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 85 Liter |
| Noise: | 82±2 Db(A) |
| Air Outlet Pipe Diameter: | DN65 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 8 bar | 18.5 m³/min |
|---|---|
| 10 bar | 15.6 m³/min |
| 12 bar | 14.5 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 2990*1700*1963 mm | 2200 kg |
| Model: | JYS-150HPM |
| Power: | 110 kW / 150 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 95 Liter |
| Noise: | 82±2 Db(A) |
| Air Outlet Pipe Diameter: | DN65 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 5 bar | 26.3m³/min |
|---|---|
| 8 bar | 21.0m³/min |
| 10 bar | 18.5 m³/min |
| 12 bar | 16.0 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 2990*1700*1963 mm | 2360 kg |
| Model: | JYS-175HPM |
| Power: | 132 kW / 175 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 96 Liter |
| Noise: | 82±2 Db(A) |
| Air Outlet Pipe Diameter: | DN40 |
Air Pressure & Volume flow
| Air pressure | Volume flow | 5 bar | 31.5m³/min |
|---|---|
| 8 bar | 24.7 m³/min |
| 10 bar | 21.3 m³/min |
| 12 bar | 18.5 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 2990*1700*1963 mm | 2445 kg |
| Model: | JYS-175HPM |
| Power: | 160 kW / 215 HP |
| Voltage/Frequency: | 380V/50Hz/3Ph (Customizable) |
| Driven Mode: | Permanent Magnet Synchronous |
| Starting Mode: | Variable Frequency Start |
| Cooling Mode: | Air-Cooling |
| Ambient Temperature: | -5~+45°C |
| Discharge Temperature: | ≤ Ambient Temp+15°C |
| Lubricant Requirement: | 96 Liter |
| Noise: | 85±2 Db(A) |
| Air Outlet Pipe Diameter: | DN40 |
Air Pressure & Volume flow
| Air pressure | Volume flow |
|---|---|
| 8 bar | 31.0 m³/min |
| 10 bar | 26.0 m³/min |
| 12 bar | 24.7 m³/min |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 3450*1880*2120 mm | 4000 kg |
