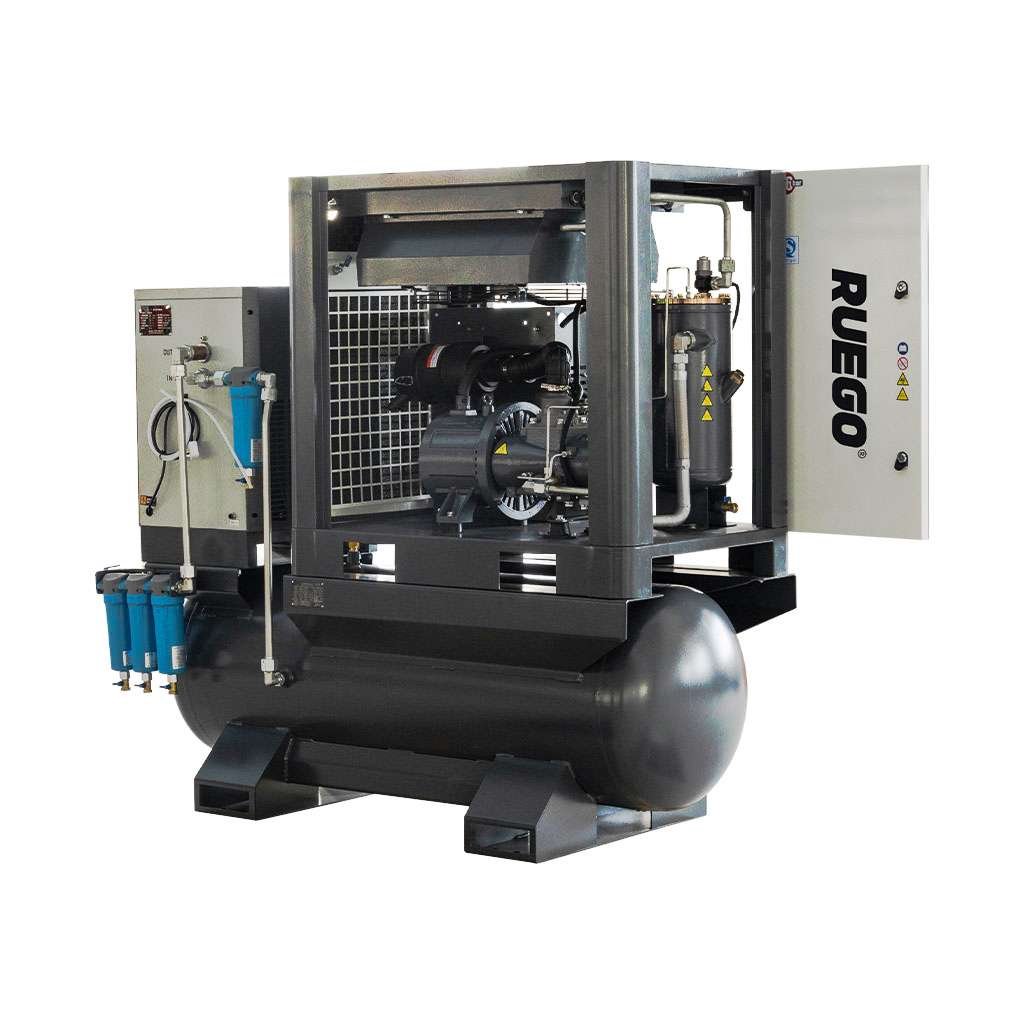

4-in-1 Laser Cutting Screw Air Compressor
The laser cutting screw air compressor (4-in-1) is a space-saving integrated solution that combines an air storage tank, compressor, refrigerated dryer, and precision filter. It is perfectly suited for laser cutting, offering adjustable pressure (up to 16 bar) and plug-and-play convenience.
Permanent Magnet Variable Speed Motor
Save space
Save space to accommodate more production equipment and work areas.
Simple and flexible
No installation required, just plug in the power supply and it is ready to use.
Cost savings
Intelligent speed control and efficient transmission structure design, all for saving your energy costs.
Key Advantages of the Laser Cutting Screw Air Compressor
The 4-in-1 laser cutting screw air compressor is an integrated solution that combines an air tank, screw compressor, refrigerated dryer, and precision filter into a compact and space-saving design. Specially tailored for laser cutting, it delivers stable and precise air pressure to ensure exceptional cutting accuracy and quality. With adjustable pressure up to 16 bar, it meets the requirements of various materials.
Equipped with an energy-efficient permanent magnet motor and a direct-drive transmission system, it effectively reduces energy loss, operating costs, and maintenance needs. Its robust F-class insulation motor ensures durability and reliability even under harsh conditions.
The integrated refrigerated dryer and precision filters provide clean, dry compressed air, enhancing equipment longevity. Easy to operate, efficient, and economical, it is the ideal choice for laser cutting applications.
Product Parameters
* For higher specifications please contact our sales team.
| Model: | JCG-20HP |
| Cooling Mode: | Air-Cooling |
| Air Tank Volume: | 400 Liters |
Air Pressure & Volume flow
| Rated Discharge Pressure: | 16 bar / 232.06 psi |
| Rated Discharge Capacity: | 1.62 m³/min / 57.25 CFM |
| Exit Temperature of Rear Cooler: | ≤ Environment Temp+15°C |
| Air Inlet/Outlet: | G3/4 |
Air Suction Parameters
| Temperature : | ≤40 °C |
| Pressure: | 1.033 kg/cm²(A) |
| Relative Humidity: | 60% |
Drive Motor Parameters
| Power: | 15kW / 20 HP |
| Speed: | 2600 rpm / 173 Hz |
| Voltage/Frequency: | 380V/190-327Hz (Customizable) |
| Starting Mode: | Variable Frequency |
| Insulation Class: | F |
| Protect Level: | IP55 |
Fan Motor Specifications
| Power: | 0.25 kW |
| Speed (50Hz): | 1400 rpm |
| Voltage/Frequency: | 380V/50Hz |
Air Dryer Specifications
| Model No: | TR02-JC |
| Power | 0.52 kW |
| Rated Holding Air Capacity: | 2.4 m³/min |
| Voltage/Frequency: | 220V/50Hz |
| The Inlet Gas Temperature: | ≤65°C |
Running Parameters
| Unloading Pressure: | 15.8 bar |
| Recovery Loading Pressure: | 14.5 bar |
| Starting Pressure of Safety Valve: | 17.6 bar |
| Stop Protection Temperature: | 110 °C |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1855*820*1695 mm | 410 kg |
| Model: | JCG-30HP |
| Cooling Mode: | Air-Cooling |
| Air Tank Volume: | 400 Liters |
Air Pressure & Volume flow
| Rated Discharge Pressure: | 16 bar / 232.06 psi |
| Rated Discharge Capacity: | 2.1 m³/min / 74.15 CFM |
| Exit Temperature of Rear Cooler: | ≤ Environment Temp+15°C |
| Air Inlet/Outlet: | G3/4 |
Air Suction Parameters
| Temperature : | ≤40 °C |
| Pressure: | 1.033 kg/cm²(A) |
| Relative Humidity: | 60% |
Drive Motor Parameters
| Power: | 22kW / 30 HP |
| Speed: | 3400 rpm / 227 Hz |
| Voltage/Frequency: | 380V/190-327Hz (Customizable) |
| Starting Mode: | Variable Frequency |
| Insulation Class: | F |
| Protect Level: | IP55 |
Fan Motor Specifications
| Power: | 0.25 kW |
| Speed (50Hz): | 1400 rpm |
| Voltage/Frequency: | 380V/50Hz |
Air Dryer Specifications
| Model No: | TR03-JC |
| Power | 0.52 kW |
| Rated Holding Air Capacity: | 3 m³/min |
| Voltage/Frequency: | 220V/50Hz |
| The Inlet Gas Temperature: | ≤65°C |
Running Parameters
| Unloading Pressure: | 15.8 bar |
| Recovery Loading Pressure: | 14.5 bar |
| Starting Pressure of Safety Valve: | 17.6 bar |
| Stop Protection Temperature: | 110 °C |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1855*820*1695 mm | 420 kg |
| Model: | JCG-40HP |
| Cooling Mode: | Air-Cooling |
| Air Tank Volume: | 400 Liters |
Air Pressure & Volume flow
| Rated Discharge Pressure: | 16 bar / 232.06 psi |
| Rated Discharge Capacity: | 3.3 m³/min / 116.64 CFM |
| Exit Temperature of Rear Cooler: | ≤ Environment Temp+15°C |
| Air Inlet/Outlet: | G1 |
Air Suction Parameters
| Temperature : | ≤40 °C |
| Pressure: | 1.033 kg/cm²(A) |
| Relative Humidity: | 60% |
Drive Motor Parameters
| Power: | 30kW / 40 HP |
| Speed: | 3000 rpm / 200 Hz |
| Voltage/Frequency: | 380V/66-200Hz (Customizable) |
| Starting Mode: | Variable Frequency |
| Insulation Class: | F |
| Protect Level: | IP55 |
Fan Motor Specifications
| Power: | 0.45 kW |
| Speed (50Hz): | 1320 rpm |
| Voltage/Frequency: | 380V/50Hz |
Air Dryer Specifications
| Model No: | TR04-JC |
| Power | 0.52 kW |
| Rated Holding Air Capacity: | 4 m³/min |
| Voltage/Frequency: | 220V/50Hz |
| The Inlet Gas Temperature: | ≤65°C |
Running Parameters
| Unloading Pressure: | 15.8 bar |
| Recovery Loading Pressure: | 14.5 bar |
| Starting Pressure of Safety Valve: | 17.6 bar |
| Stop Protection Temperature: | 110 °C |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1810*960*1730 mm | 510 kg |
| Model: | JCG-50HP |
| Cooling Mode: | Air-Cooling |
| Air Tank Volume: | 400 Liters |
Air Pressure & Volume flow
| Rated Discharge Pressure: | 16 bar /232.06 psi |
| Rated Discharge Capacity: | 3.99 m³/min / 140.94 CFM |
| Exit Temperature of Rear Cooler: | ≤ Environment Temp+15°C |
| Air Inlet/Outlet: | G1 |
Air Suction Parameters
| Temperature : | ≤40 °C |
| Pressure: | 1.033 kg/cm²(A) |
| Relative Humidity: | 60% |
Drive Motor parameters
| Power: | 37kW / 50 HP |
| Speed: | 3600 rpm / 240 Hz |
| Voltage/Frequency: | 380V/66-240Hz (Customizable) |
| Starting Mode: | Variable Frequency |
| Insulation Class: | F |
| Protect Level: | IP55 |
Fan Motor Specifications
| Power: | 0.45 kW |
| Speed (50Hz): | 1320 rpm |
| Voltage/Frequency: | 380V/50Hz |
Air Dryer Specifications
| Model No: | TR05-JC |
| Power | 0.52 kW |
| Rated Holding Air Capacity: | 4 m³/min |
| Voltage/Frequency: | 220V/50Hz |
| The Inlet Gas Temperature: | ≤65°C |
Running Parameters
| Unloading Pressure: | 15.8 bar |
| Recovery Loading Pressure: | 14.5 bar |
| Starting Pressure of Safety Valve: | 17.6 bar |
| Stop Protection Temperature: | 110 °C |
Size & Weight
| Length*width*height | Weight |
|---|---|
| 1810*960*1730 mm | 570 kg |
Unleashing Precision and Efficiency: Air Compressors for Laser Cutting that Change the Industry
Precision Laser Cutting of Metal Sheets
The 4-in-1 laser cutting screw air compressor ensures stable and precise air pressure, making it highly suitable for cutting metal sheets of various thicknesses. Its clean and dry air output enhances cutting precision, delivering smooth edges and high-quality results in applications such as industrial manufacturing and metal processing.
High-Efficiency Cutting for Automotive Parts
In the automotive industry, where precision and efficiency are paramount, the specialized laser cutting air compressor supports the cutting of components such as chassis parts, brackets, and panels. Its reliable performance and energy efficiency help reduce production time while ensuring consistent cutting results.
Custom Fabrication for Machinery and Equipment
From creating intricate designs to producing durable machine components, the RUEGO laser cutting screw air compressor’s adjustable pressure and clean air supply meet the diverse demands of custom fabrication. It enhances operational flexibility, making it an ideal choice for workshops focused on machinery and equipment production.
Electronics and Precision Engineering
For delicate tasks like cutting circuit boards or intricate electronic components, the 4-in-1 laser cutting air compressor delivers a stable airflow to support highly precise cutting operations. Its compact design and low operating noise make it well-suited for electronics manufacturing environments.
